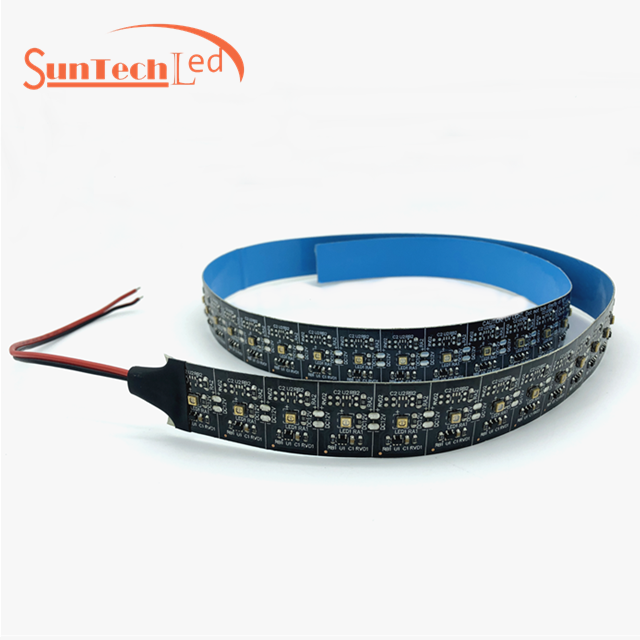

Sterilization UVC LED Strips 60leds 12v

UV-C LED lights have shown great promise in providing effective sterilization and disinfection of surfaces.This is due to the way in which the DNA and RNA molecules react to these wavelengths, rendering the pathogens sterile and unable to reproduce.

Availability:

Product Detail Description

(1) 60 pcs UVC LED chip Per meter

(2) Good stability, CE & RoHS approved

(3) Flexible PCB 3oz thickness

(4) Genuine 3M tape or good heat dissipation function blue tape

(5) DC12v input, safe installation


For more product information, please download the specificationsSpeification-60leds-UVC-DC12v-strip-light.pdf



Sterilization UVC LED Strips

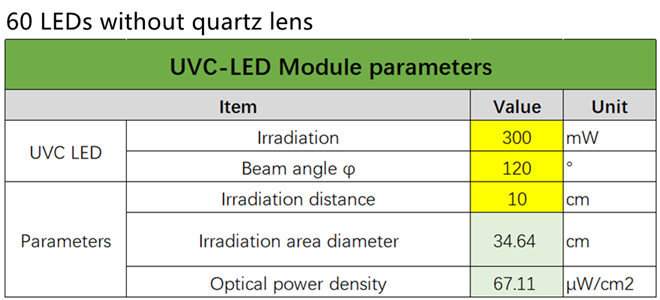

60LEDs 12v 120degrees

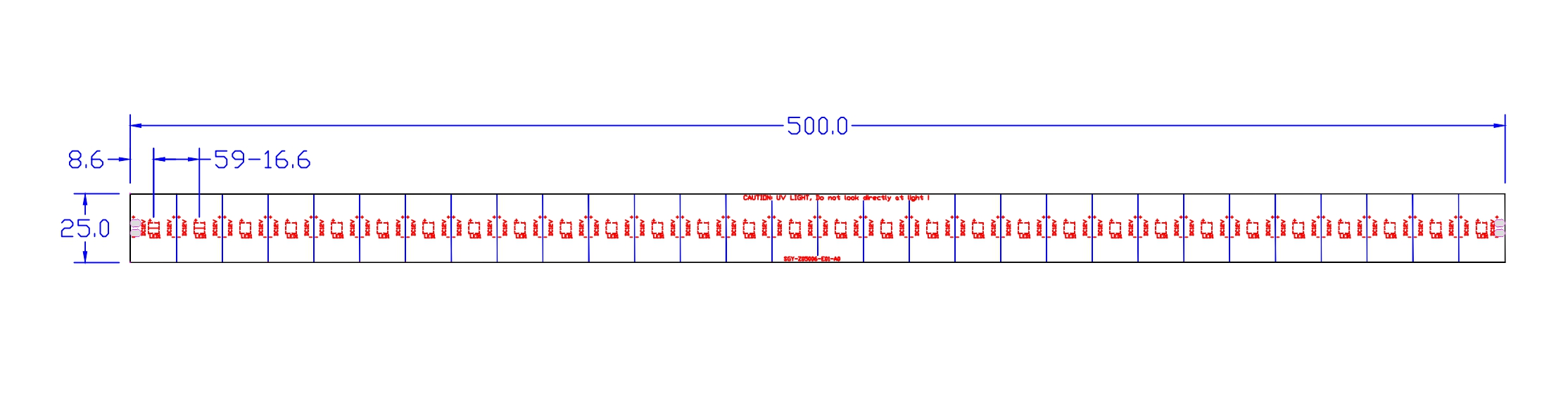

UVC LED Strip size

UVC LED Strip Size

UVC LED chip information


UVC LED chip

UVC LED STRIPS 60LEDS 12v Test

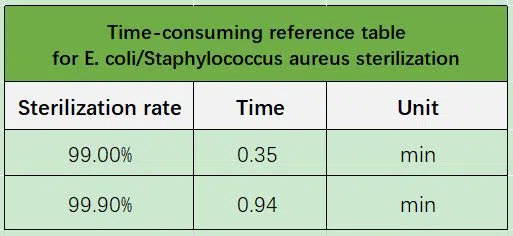

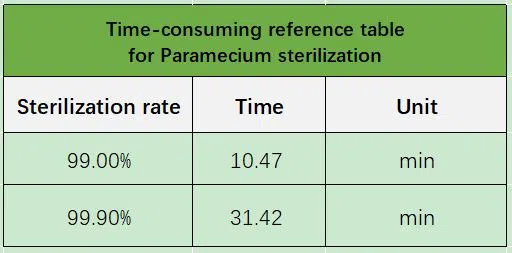

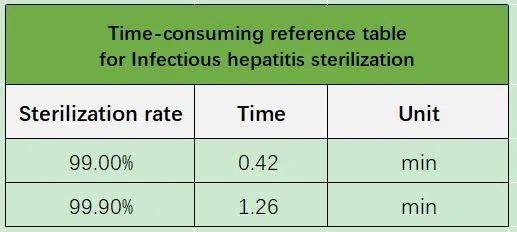

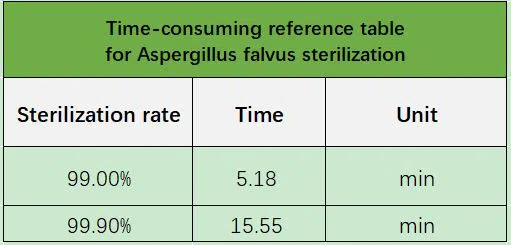

The sterilization rate of UVC LED Strips at 10cm for certain virus as below:

image    image

                                                  image    image

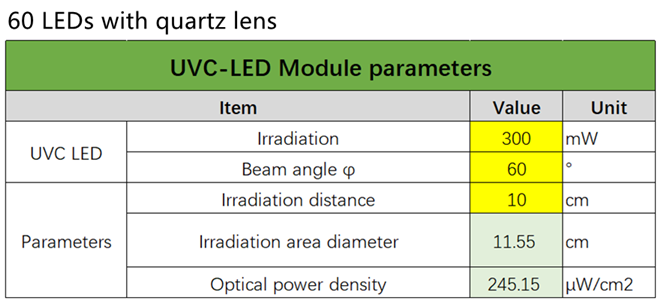

We also offer UVC strip light with quartz lens, which emits more UVC doesage( 1522μw/cm⊃2;)than UVC strip light without lens does(758μw/cm⊃2;). The test data for UVC 60leds 12v strip light with quartz lens is as below,

                      60degreesVS120degrees




                                                                             UVC test comparition after.                                                     uvc 12v with lens__


UVC Germicidal Strip Test Report

(authorized by GUANGDONG DETECTION CENTER OF MICROBILOGY, which is authoritative testing institute in China)


uvc germicidal test report 1uvc germicidal test report 2

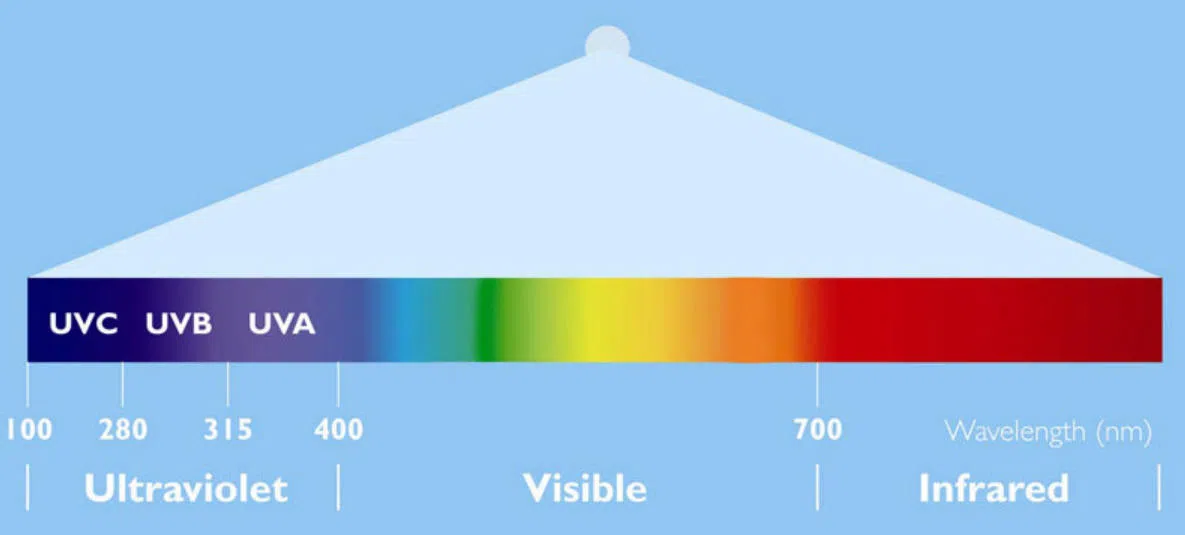

Ultraviolet energy is categorized by wavelength, and is broken down into the following types:

UV-A: 315-400 nm

UV-B: 280-315 nm

UV-C: 100-280 nm

UVA-B-C

Why Does it Have to be UV-C?

The reason it is absolutely critical that the correct wavelength of ultraviolet is used for germicidal applications is due to the mechanism through which the pathogen becomes deactivated. DNA and RNA are the building blocks of life, including microscopic organisms and pathogens such as viruses, bacteria and molds. Without this genetic material, pathogens are unable to reproduce, eventually leading to the death of an infectious colony.

DNA under UVC

UVC radiation from our sun is blocked by the atmosphere so no living organism, including people, have protection from it. It is as dangerous to viruses as to humans and so Sterilization UVC LED Strips must be deployed with great care. Tiny doses can damage the skin or eyes. UVC  lamps will never achieve the widespread use required to fight a pandemic.

UVA radiation is present in daylight, people are exposed to it every day outside in the sunlight. There is a natural protection and many ways to increase it further. Viruses and bacteria are microorganisms and their protection is substantially weaker.

UV absorbed by ozone layer (1)

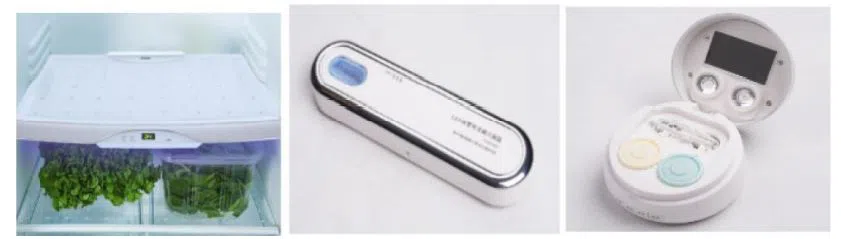

Application

    1. Surface Sterilization    2. Water purification    3. Air purification



UVC applications

 Attention!

1. Don't look directly at and get close to the UVC Light source,it is harmful for eyes and human skin.

2. Please read the product instructions carefully before the product is installed and used;

3. The power output must be DC12V;

4. The product is lightly put, to avoid damage to the product, please hand over to professionals to install and repair, maintenance;

5. When wiring must cut off the external power supply, to prevent people from touching or damage the strip, the product must be installed after the installation before powering;

6. When using external power cords outdoors, it is necessary to take measures to waterproof and leak water;

7. It is forbidden to press the surface of the LED;
