What Is The Difference WS2811 VS WS2812B VS WS2813 Strip Light?

May 14, 2019

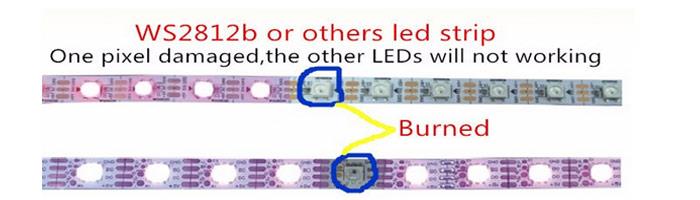

WS2812B LED strip has only one data signal when one pixel dies, the signal cannot pass through,



WS2813 digital LED strip , you can see as updated version of WS2811 addressable LED strip, it has double signals even one signal is broken, others can still work well, because the signal can pass through, please check picture below:

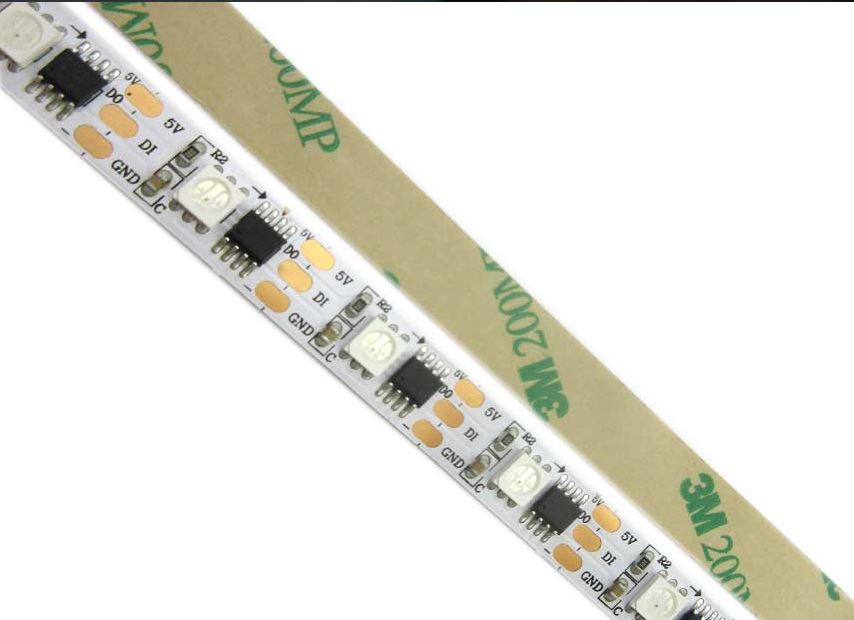

WS2811 is the old version with external IC , it often made to DC12v addressable strip light, has only one signal too but it is mature for many years.



SK6812 is a clone of WS2812B, with IC built-in, usually made to DC5v individually controlled LED

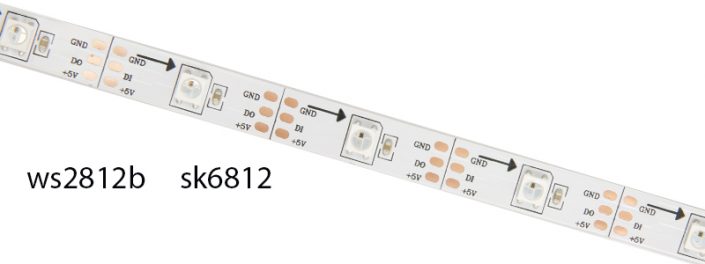

WS2812B LED chip

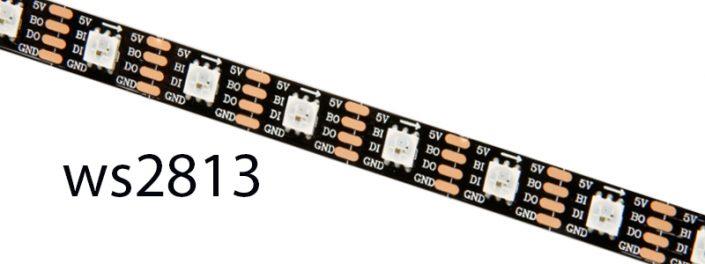

WS2813 LED chip
