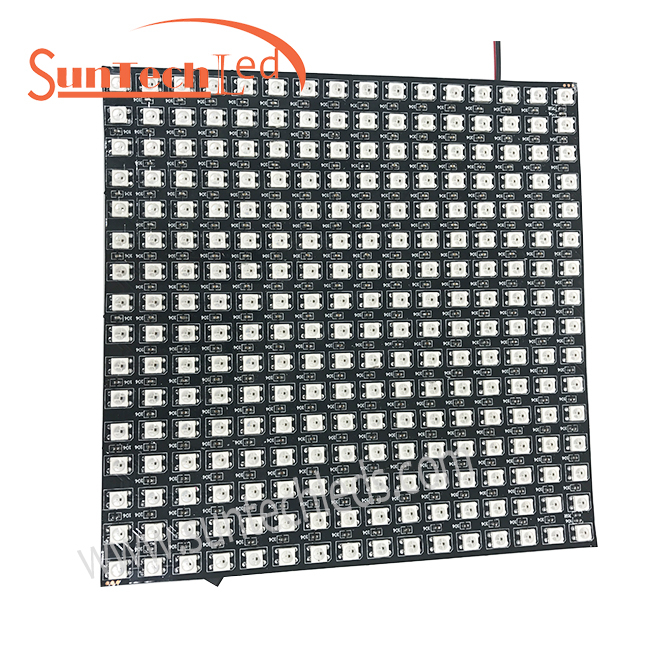

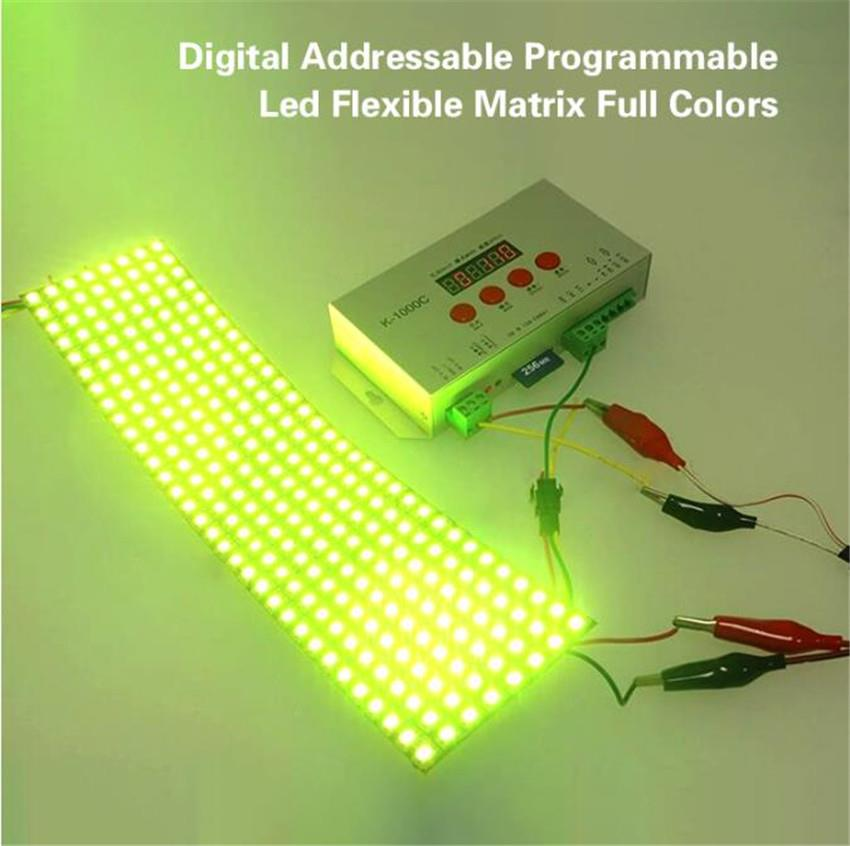

APA102 flexible led matrix display is each one led controlled, based on SPI interface, APA102 PMW frequency is 19.2Hz, a lot quicker than WS2812B, SK6812.
16x16cm, 8x32cm size are both available, the size could be customized.
We offer you factory prices with quite good quality, products are CE, RoHS approved.
APA102 flexible led matrix display is each one led controlled, based on SPI interface, APA102 PMW frequency is 19.2Hz, a lot quicker than WS2812B, SK6812.
16x16cm, 8x32cm size are both available, the size could be customized.
We offer you factory prices with quite good quality, products are CE, RoHS approved.
Model | IC Qty | Color | LED Qty | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||
STMX-APA102RGB-16X16-5V | 256 | Addressable RGB | 256 | ≤76.8W | 5v | 160x160 |
1. For the PCB we use 3 ounce which is a lot thicker, good conductivity
2. With built-in IC, like SK6812, WS2812B, APA102 each RGB chip is individually controlled
3. The addressable panel is designed based on SPI protocol, any controller that supports SPI protocol can control this flexible matrix display
4. 16x16cm, 256 RGB chips, 256 pixels.
5. Data speed of APA102 addressable flexible panel is 19.2k Hz, much quicker than other IC
6. You can bend this product in installation but not to much
7. These products are CE & RoHS cerficated.
8. Full color programmable with dimming feature.
Note: Repeated / Over bending may significantly reduce the structural integrity of the flexible panel. It is advisable when
bending it over curved surfaces to not be too rough with this product as you may damage LED traces or the panel itself.
Needless to say, do NOT fold this matrix in half!
1) Illuminating signs
2) Path & contour marking
3) Edge-Lighting of transparent or diffused materials
4) Decorating lighting.
5) Architectural decoration Lighting
6) Backing lighting for under water project
7) Archway/Canopy & Bridge Edge Lighting
8) Cove lighting
1) ODM+OEM Service offered
2) Overseas Agency is opened
3) Provide full support in lighting solutions for customer request.
4) More quantity, more discount
Shipping
The shipping method is totally according to your requirements, we will provide our professional suggestions for the shipping for you save money. By Express, the package is sending by DHL, FedEx, UPS, TNT factory to door service; By Air shipping, the packages are deliver from factory to Airport, you need go to the destination Airport and pick up the shipment. By Ocean shipping, the packages are deliver from factory to Seaport, you need go to the destination seaport and pick up the shipment.
